8dtek Meters ended production in 2016. Meters under the 8dtek name are no longer available. Sathero Meters are the most technically advanced hand held meters.

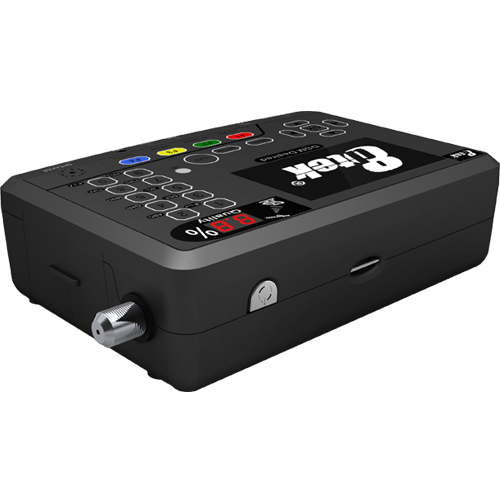

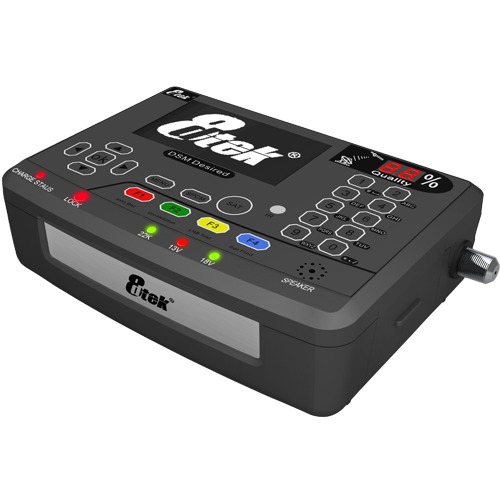

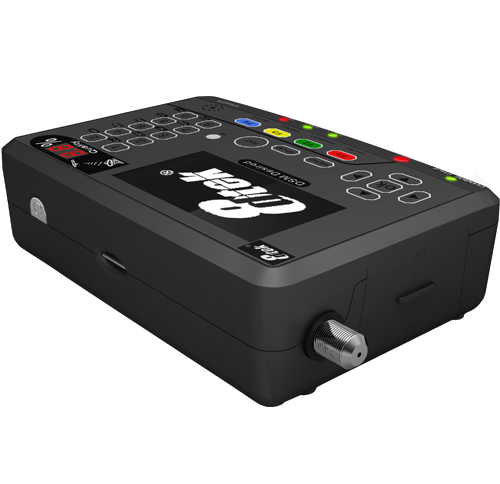

Desired Meter

HIGHLIGHTS

  • DVB-S2
  • BER, S/N, MER, FEC Measurement
  • Real Real-Time and Multi-Analyzing Spectrum
  • Constellation Chart
  • LNB Test
  • 3 Inch Display
  • AV OUT/RS232
  • RJ45
  • USB

FEATURES

  • Installation Meter & Full Measurement for DVB-S2
  • Real Real-Time and Multi-Analyzing Spectrum
  • Constellation Chart
  • LNB Test
  • BER, S/N, MER, FEC Measurement
  • Auto Search, Blind Search, NIT Search, Manual Search
  • Satellite Name & Degree Auto Detective & Display
  • Auto DiSEqC1.0/DiSEqC1.1/DiSEqC1.2, USALS
  • MDU & Unicable
  • Local satellites list showing automatically
  • Easy upgrading by Ethernet & USB & RS232 Port
  • Satellite List Editable by Editor via PC
  • RCA AV-OUT for External Display, TV (PAL Only)
  • 13V/18V,22K supported
  • Dish Antenna Angle Calculator
  • Multi-Language OSD: English, German, French, Spanish, Italian etc.
  • Global, Local Satellite list
  • LED(Red/Green) & Audio Indication for Signal Lock
  • 3 Inch High Definition TFT LCD Screen

SPECIFICATIONS

System Capabilities
DVB-S/S2 Compliant Yes
LNB/Tuner Input For DVB-S/S2
Connector F type, male
Frequency Range 950MHz-2150MHz
Signal Level -65dBm~-25dBm
LNB Supply 13/18V,max500mA
LNB Switch Control 22KHz
Impedance 75Ω
Demodulator for DVB-S/S2
Front End QPSK(DVB-S)8PSK(DVB-S2)
Symbol Rate 2Mbps~45Mbps(DVB-S)
2Mbps~30Mbps(DVB-S2)
SCPC and MCPC Capable Yes
Spectral Inversion Auto conversion
System Resource
Processor 32bit processor
SDRAM 16Mbytes
FLASH 2Mbyte
Video Decoder
MPEG 2 Main Proflie@Main Level
Data Rate up to 15M bits/s
Resolution 720*576,720*480
Video Format PAL/NTSC/SECAM
MPEG Audio
MPEG 1 layer 1&2 YES
Type Mono
Sampling Rates 32,44.1 and 48KHz
Port
Connector USB,RS232, Ethernet, AV-OUT,DC
Power Supply
Li-ioN Battery 2000 mAH
Supply Voltage 13.3Volt
charger 90-240V
Panel Connectors
Digital Tuner Input F type, Male
Physical Specification
Size (WxDxH) in mm 139x99x37
Weight(Net) 0.44KG
Monitor
Display Screen 3 Inch TFT
Signal Strength Display Yes
